DIY Solar Oven: The Step By Step Guide

Solar ovens have the potential to revolutionize your cooking. They let you prepare meals without using appliances that consume a lot of energy, like burners and ovens. Solar ovens lower energy costs while simultaneously reducing greenhouse gas emissions, which benefits the environment and the environment.

Solar ovens are gaining popularity, but some may be wary of the technology or feel intimidated by it. This guide is for you if you want to construct your solar oven but are concerned about doing it correctly the first time.

We'll go over the various kinds of solar ovens, how they operate, and any considerations you should make before beginning construction.

What is a Solar Oven?

Two IY Solar Oven

A simple, environmentally friendly solar oven uses the sun's energy to heat and cook food. A pan or other cooking surface is heated to the proper temperature in a solar oven using sunlight.

The sun's energy powers a solar panel and then produces electricity. An oven fan circulates the air inside the box with the help of this electricity. The meal is heated and cooked by the hot air inside the box.

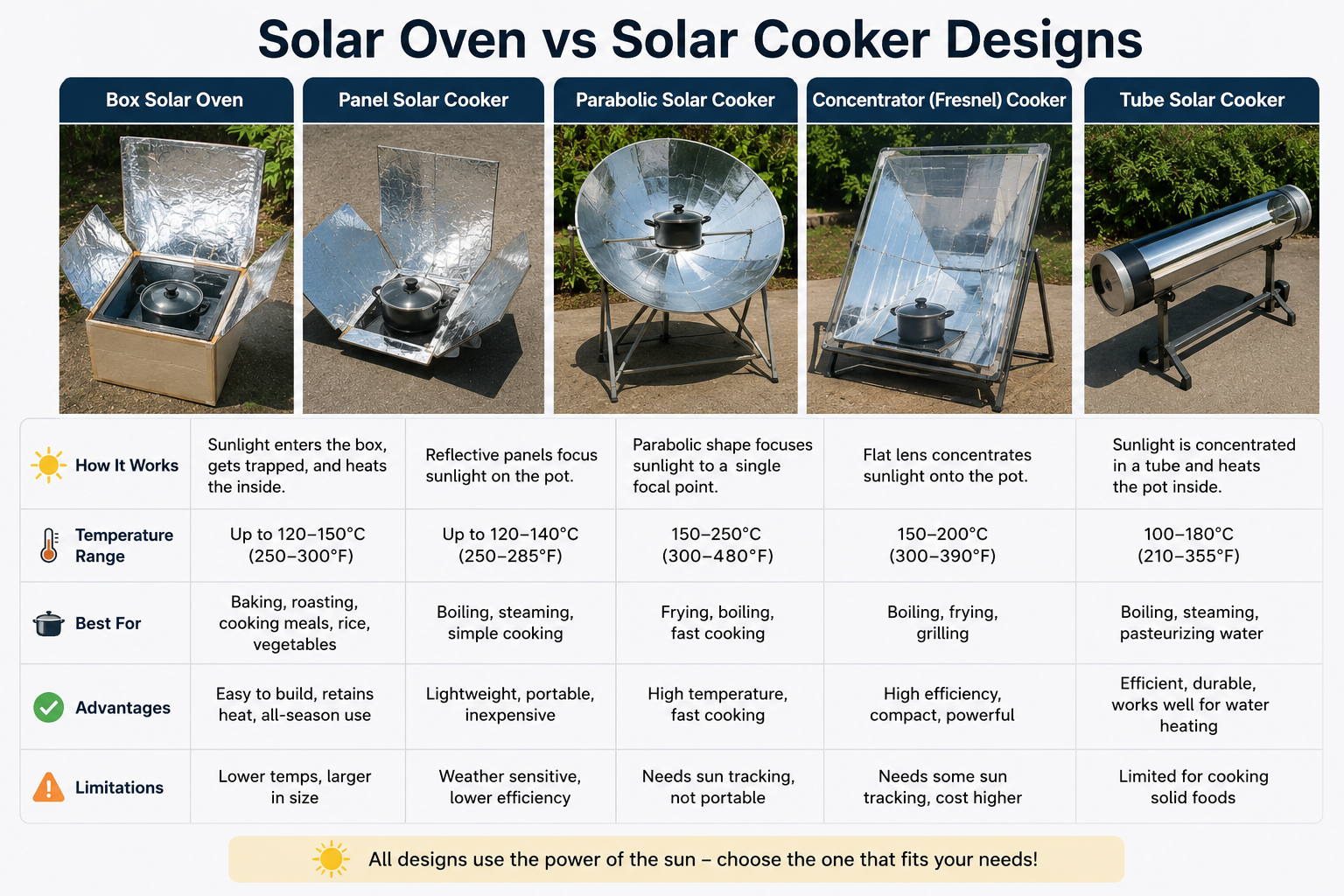

Types of Solar Ovens

These amazing gadgets enable us to prepare tasty meals while reducing our carbon footprint using solar power. Numerous solar ovens are available today in the intriguing world of solar ovens.

Let's explore the range of alternatives that make solar cooking a practical and interesting option, from short-box cookers to sophisticated parabolic cookers.

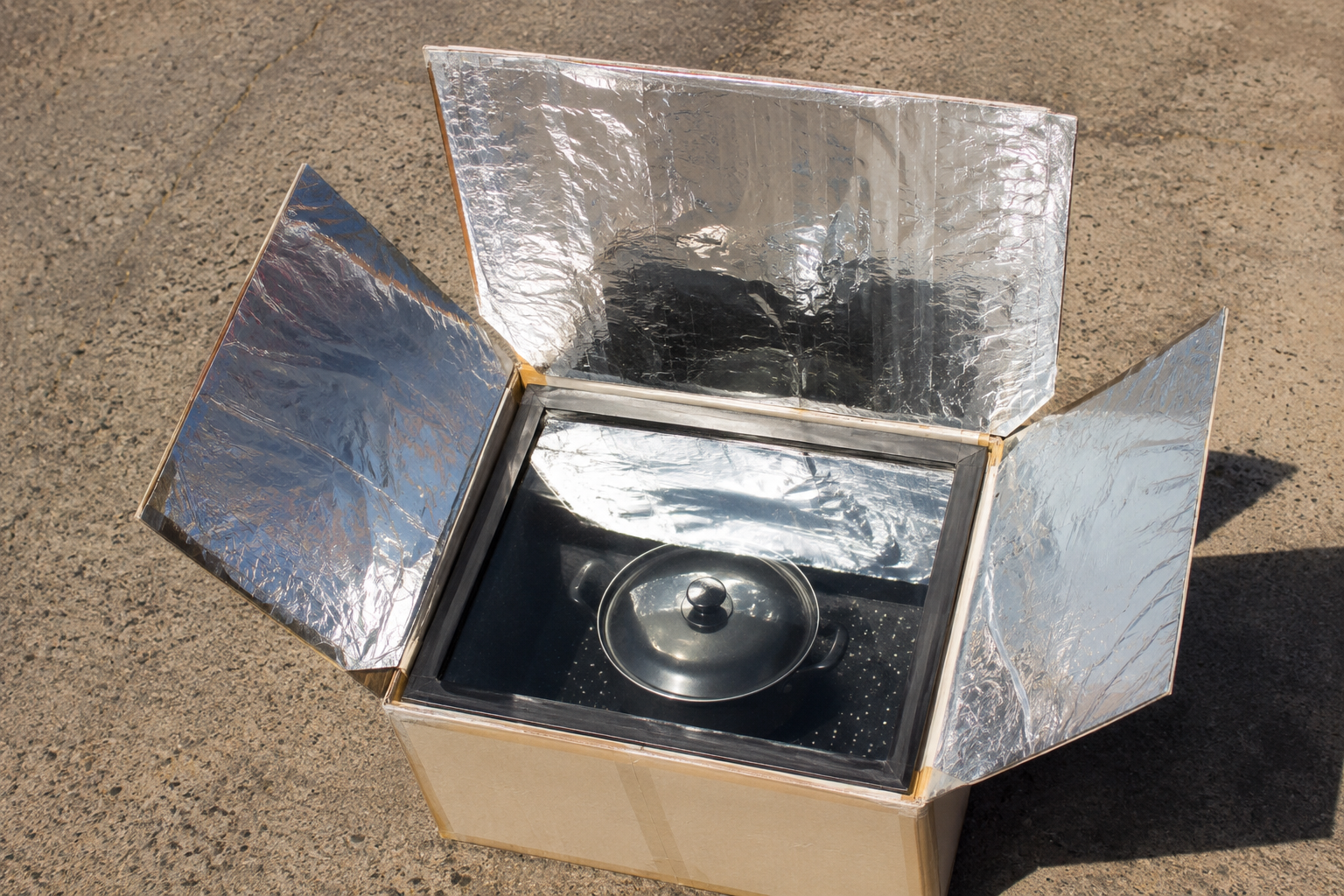

Box Solar Ovens

a cardboard DIY solar oven

Box cookers are the most common and simplest type of solar oven. They consist of an insulated box with a transparent lid or panel that allows sunlight to enter and trap heat inside.

The inner surface of the box is typically lined with reflective material to enhance heat absorption. Incredibly adaptable, box cookers can be used for baking, roasting, and even slow cooking. They are cost-effective, easy to build or purchase, and suitable for households and camping enthusiasts.

Parabolic Solar Ovens

Parabolic cookers are high-tech solar ovens that utilize the reflective properties of a parabolic-shaped dish to concentrate sunlight onto a central focal point. Parabolic cookers' rapid and effective cooking is made possible by the concentrated energy that produces intense heat.

With their ability to reach high temperatures rapidly, parabolic cookers are perfect for stir-frying, searing, and boiling. However, their sophisticated design and increased cost make them ideal for advanced users or specialized applications.

Panel Solar Ovens

DIY Solar oven

Panel cookers, also known as panel or panel-style solar ovens, are lightweight and portable. They consist of reflective panels that concentrate sunlight onto a cooking vessel or pot suspended in the center.

Panel cookers are easy to assemble, foldable for transport, and are an excellent choice for individuals who need a compact solar cooking solution. They are particularly useful for heating liquids, cooking grains, and preparing stews and soups.

Hybrid Solar Ovens

yellow DIY solar oven

Hybrid solar ovens combine solar power with other energy sources, such as electricity or fuel. These ovens offer greater flexibility by allowing users to switch between solar cooking and conventional methods.

Hybrid ovens are particularly beneficial in areas with inconsistent sunlight or unfavorable weather conditions. They provide a reliable cooking alternative while reducing reliance on non-renewable energy sources.

How much does it cost to build a Solar Oven?

The cost of building a solar oven can vary depending on the type of solar oven you choose to construct and the materials you use. Building a basic box cooker is affordable. The primary materials required are:

  • A sturdy box.
  • Reflective material (such as aluminum foil).
  • A transparent cover (like glass or Plexiglas).

The overall cost can range from $10 to $50, depending on the size and quality of the materials used. Panel cookers are generally lightweight and require minimal materials.

The cost of materials for a panel cooker typically falls within the range of $10 to $30. Parabolic cookers tend to be more complex and require specialized materials. Building a parabolic cooker can cost between $50 and $100.

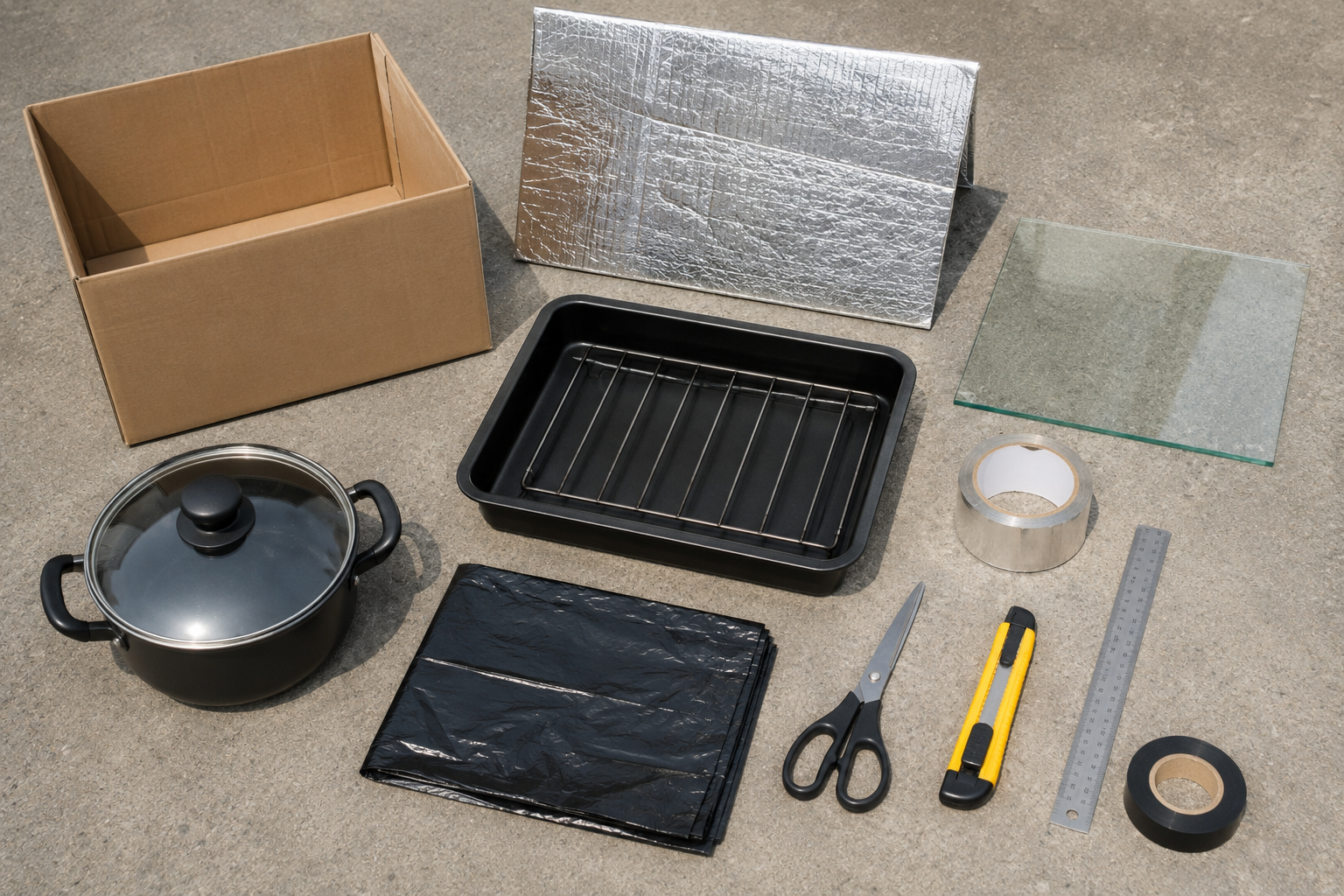

What do you need to build a Solar Oven?

To make a solar oven, you will need a few necessary things. To build the oven's outer structure, start with a durable material like cardboard or wood. Next, insulate the inside walls using newspaper, hay, or sawdust.

This insulation aids in heat retention and raises the oven's effectiveness. Next, a reflective material, such as aluminum foil or reflective insulation, should cover the oven's inside surfaces. As a result, the temperature inside the cooking area will rise as sunlight is reflected onto the area.

Next, use glass or Plexiglas for the oven's top because they are transparent and let light in a while trapping heat inside. Finally, consider coating the oven's interior with black paint to maximize heat absorption.

In addition, standard supplies like scissors, tape, glue, a ruler, and a pen will be helpful regardless of the type of solar oven. You may start your solar oven-building trip and discover the world of sustainable cooking with the help of these materials and tools.

DIY Solar Oven: How to make Solar Oven?

DIY Solar Oven

Exploring sustainable cooking techniques is rewarding when you build your solar oven. In this blog post, we'll walk you through the steps of building a do-it-yourself solar oven with basic supplies. So get ready to start a solar cooking journey and enjoy tasty meals produced with renewable energy!

Step 1: Prepare the box

You require a box with a lid and three sides to create a solar oven. Additionally, you will require plastic wrap to cover the top of the oven and aluminum foil to line the inside of the box flap.

Cooking can begin after the box has been prepped. Ensure the box is clean and free of contaminants before cooking. After that, put aluminum foil on top of your food and bake it. To prevent heat from escaping during cooking, tape a couple of layers of plastic wrap across the lid's opening.

Step 2: Insulate the box

Insulation is crucial when building a solar oven. You can use insulation or cotton padding to stop heat loss within the oven. In addition, it's advisable to cover the bottom of the box with black construction paper and adhere it to the box's surface to maintain a constant temperature.

Step 3: Add the window

For the DIY Solar Oven to be complete, a window is needed. It lets the sun's rays enter the oven and heat the food. To create a window, you will place a clear plastic or glass cover over the box's open top. This retains heat and moisture inside the solar oven and is an efficient ventilation system.

Step 4: Add the cooking rack

You can add a cooking rack to the solar oven for better airflow and to hold the food you are cooking. Aluminum or stainless steel, both heat-resistant materials, should be used to create the cooking rack.

A minimum of two inches should separate the cooking rack and the cooker's aluminum foil or mylar surface. This will guarantee that the food is cooked uniformly and gets enough air circulation.

Step 5: Reflect sunlight

To heat food in solar ovens, sunlight must be reflected off a reflecting surface. The quickest way to absorb heat and reach the required temperature is with black bottoms and cookware.

Clear covers are beneficial for trapping heat within the oven. In addition, orienting the reflector towards the sun as it moves can aid in keeping the food inside the oven at a constant temperature.

Step 6: Test your Solar Oven

Set up your solar oven outside in full sunlight, and wait for the interior to reach 178°F (70°C). When the sun peaks in the sky, between 11 am and 3 pm, this is the ideal time to use your oven. You must adjust your oven to keep the reflector towards the sun as the sun moves.

Maintenance tips for your DIY Solar Oven

white DIY solar oven

Maintaining your DIY solar oven regularly is essential to ensure its long-term performance. By adhering to these upkeep suggestions, you can maintain your solar oven in top shape for sustainable and fun cooking trips.

Keep it clean

To keep your solar oven's reflective surfaces working properly, clean them frequently. Use a damp cloth or sponge to clean the oven's lid, walls, and interior to eliminate accumulated dirt, dust, or debris.

Maintaining a clean, scratch-free transparent cover will maximize sunlight penetration. Next, use a soft-bristled brush and soapy water to scrub the surfaces and remove stubborn stains carefully.

Store it properly

To prolong the longevity of your solar energy oven, you must take adequate care of it. Keep the solar oven dry and cool while not in use. Additionally, verify the solar cooker is fully built with its windscreen and reflective coating before storage. Finally, wrap the solar oven with a towel or bag to remove dust.

Check for damage

It's crucial to look inside your solar oven for any damage to the foil flap or other components. You should also look for any tears or signs of wear and tear in the oven's construction paper. You can maximize the energy output of your solar oven and cut down on energy costs by taking good care of it.

Protect it from the weather.

Store your solar oven in a dry, protected location to shield it from precipitation, chilly temperatures, and inclement weather when not in use. Excessive exposure to moisture and excessive temperatures may harm the materials and degrade the effectiveness of your oven. When not used for an extended period, think about storing it inside or covering it with a tarp.

Test it regularly

Your solar oven should be tested frequently to ensure it operates properly. Use an oven thermometer to check the temperature inside the oven and ensure it's at 178°F (70°C).

Pros & Cons of Solar DIY Oven

Like any substantial investment building a solar oven to heat your food utility free on sunny days also has its own peculiar set of pros and cons. However, roasted Marshmallows and nachos on a hot day made inside one's solar cooker can be your reality once you carefully consider the following pros and cons.

Pros

A solar DIY oven offers many advantages worth considering. First, it is an environmentally friendly cooking option because it uses renewable solar energy. Utilizing solar energy reduces your carbon impact and promotes a cleaner world.

Solar ovens don't need electricity or fuel, which saves money and promotes energy independence. They are simple to use, and with a little experimentation, you can make tasty, slow-cooked meals with distinctive flavors.

Additionally, transportable solar ovens let you bring them along for outdoor excursions or camping holidays.

Cons

Although solar DIY cookers have numerous benefits, there are some drawbacks. They rely heavily on sunshine, which is one big restriction.

Cloudy or overcast days can make the oven less effective because it needs direct sunshine to attain high temperatures. Patience is needed because cooking periods in solar ovens are typically longer than those in conventional ovens.

Additionally, the environment and geographic location affect solar ovens. The oven's efficiency could be diminished in places with little sunshine or during specific times of the year.

Solar ovens' limited food preparation capacity, typically made to prepare small to medium-sized meals, presents another potential difficulty.

Bottom Line

Numerous advantages, including eco-friendliness, economic savings, and the chance for educational opportunities, come with a solar DIY oven. But it's crucial to consider its drawbacks, such as its need for direct sunshine, prolonged cooking times, and reduced cooking capacity. A Homemade solar oven may be the best option for you by weighing the benefits and drawbacks.

Frequently Asked Questions

How hot can a DIY Solar Oven get?

A homemade solar oven can heat up to 300 degrees Fahrenheit (148 degrees Celsius). The ambient temperature range is broader, though, and can reach as low as 121 degrees Celsius (250 degrees Fahrenheit) or as high as 165 degrees Fahrenheit (330 degrees Fahrenheit). So, a lot will depend on the oven you select, how much sunlight it receives, and your insulation.

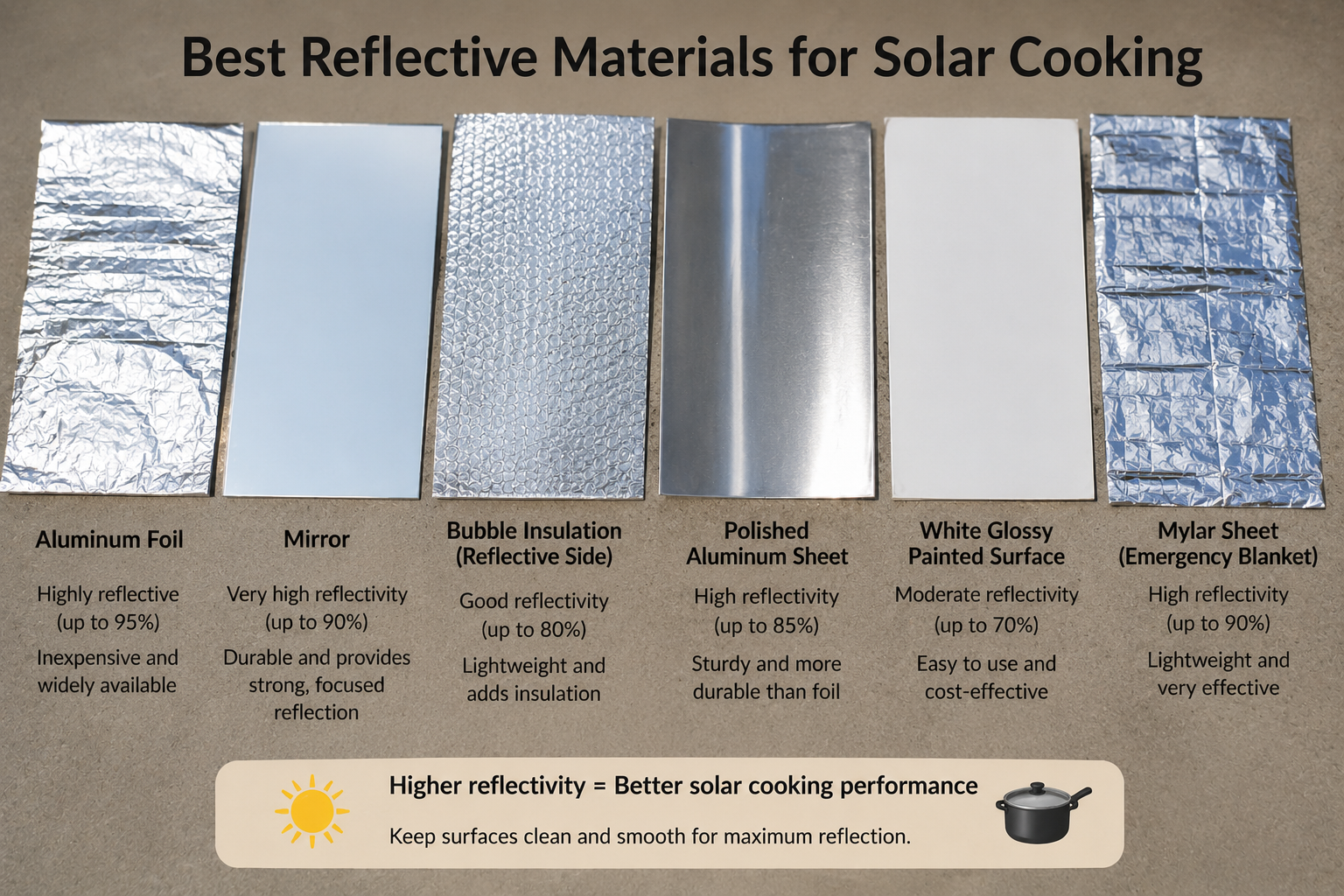

What is the best material to make a solar oven?

You can use reflective surfaces like aluminum foil or reflective insulation as the ideal material for constructing a solar oven. These surfaces will reflect UV rays into the oven, assisting with internal heating.

In order to retain heat and reflect sunshine onto the food, a clear covering made of transparent plastic or glass is recommended. Black and dark hues are superior at absorbing heat and warming an oven.

How does your Solar Oven work compared to a real kitchen Oven?

There are some observable performance variations. Compared to conventional ovens, which can achieve higher temperatures more rapidly, solar ovens often have lesser temperature ranges and may need to cook food for longer periods.

This means using a solar oven for cooking techniques, including baking or broiling, may be more difficult or impossible.

How long will it take to build a Solar Oven?

With a comprehensive tutorial, making a simple solar cooker should take up to 2 hours. But you might need more time if you adorn your oven with extra add-ons.
